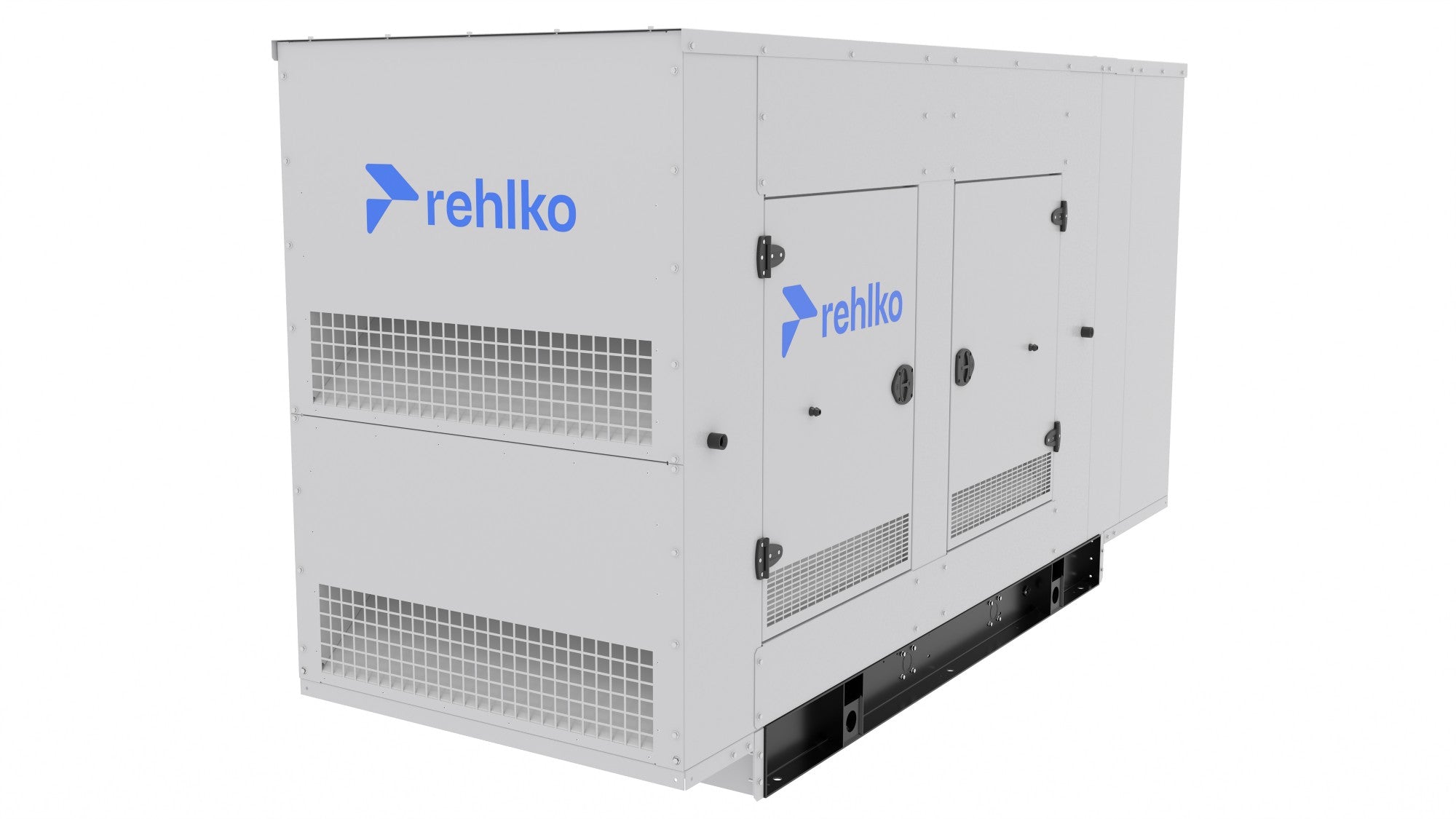

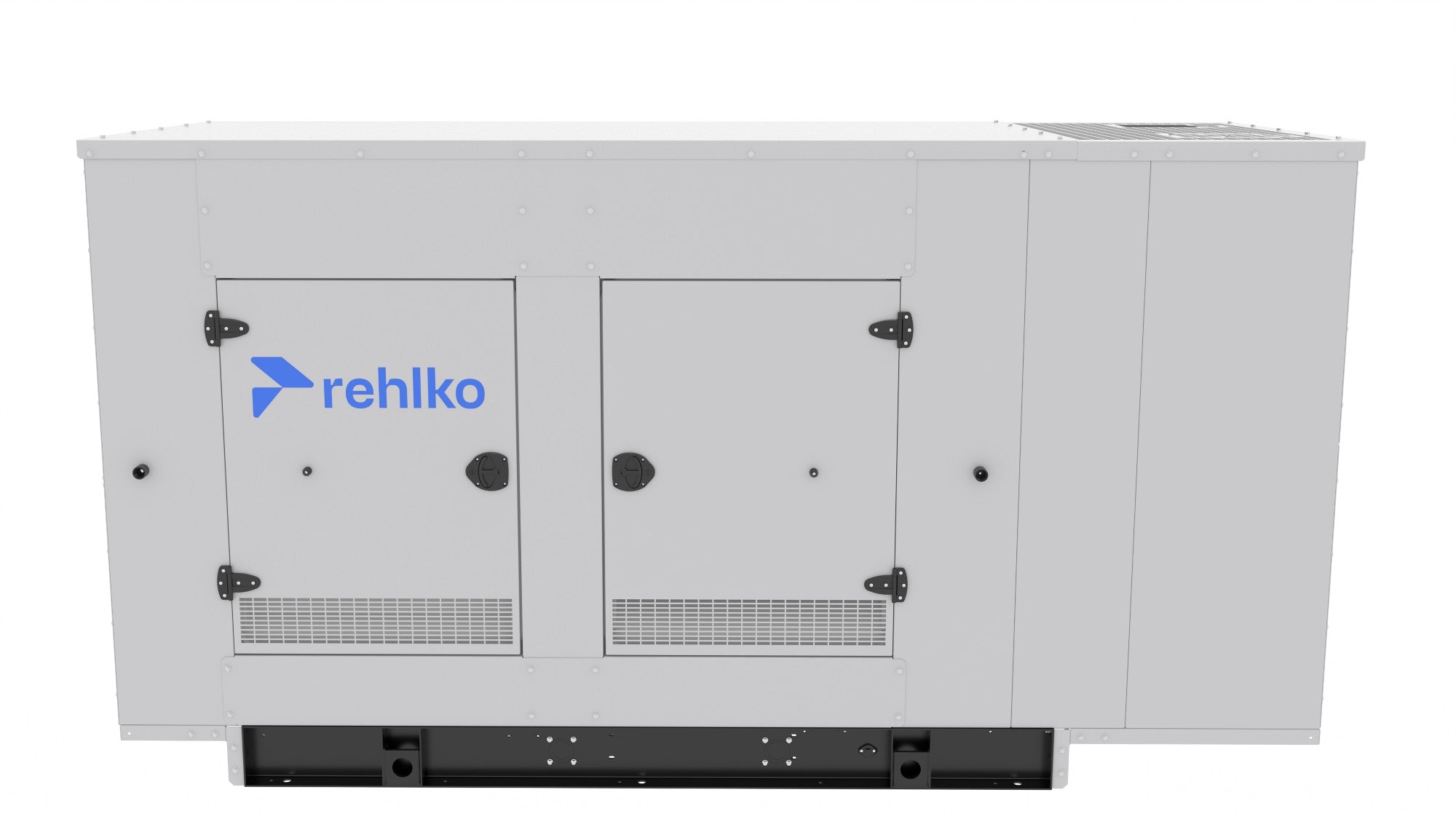

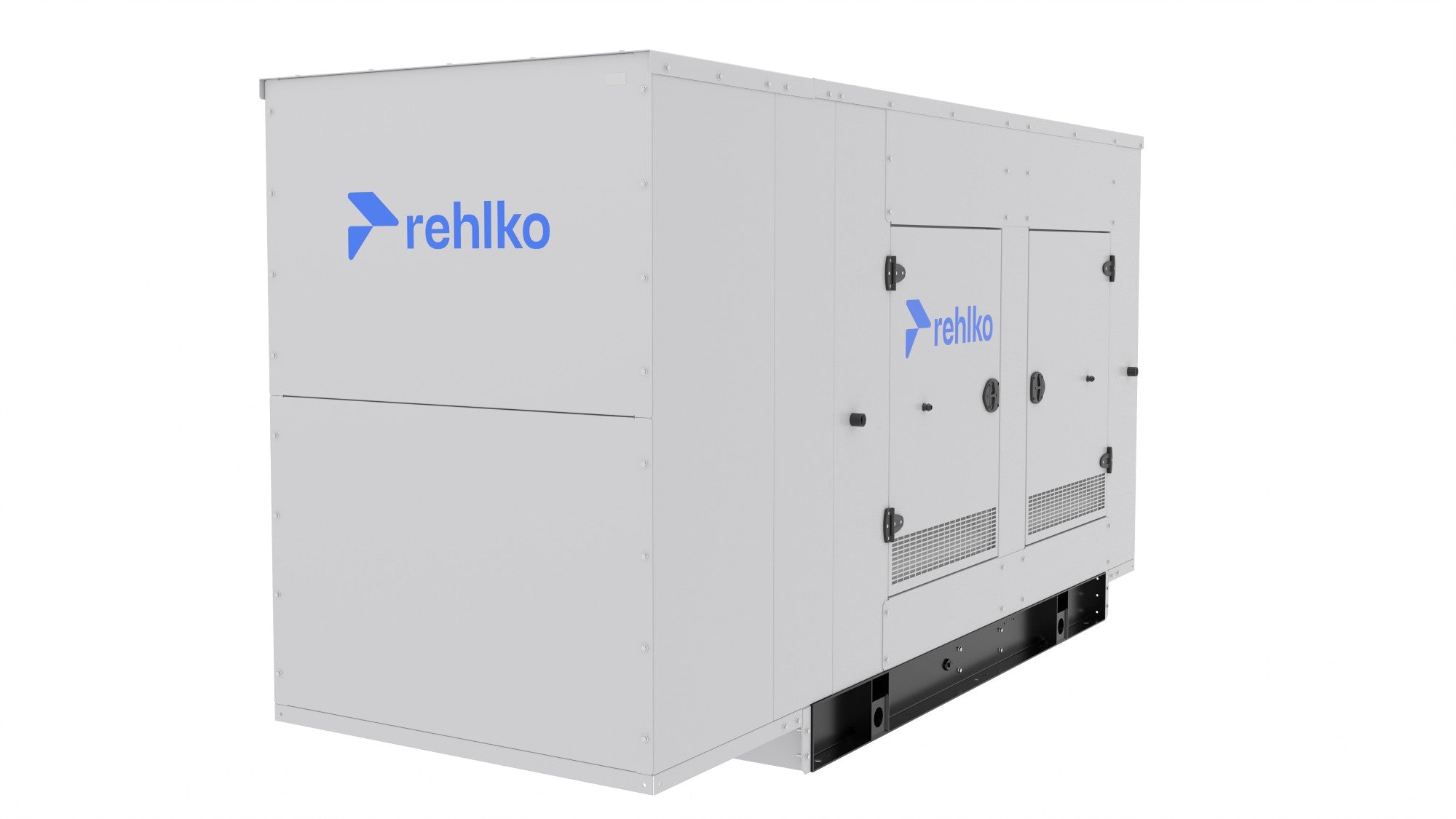

KG200 w/ Sound Enclosure

STANDARD FEATURES

• KOHLER Co. provides one-source responsibility for the generating systems and accessories
• The generator set and its components are prototype-tested, factory-built, and production-tested
• The 60 Hz generator set offers a UL 2200 listing
• The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards
• A one-year limited warranty covers all systems and components. Two-, five-, and ten-year extended warranties are also available
• Environmental Protection Certified for Stationary and Mobile Emergency and Non-Emergency applications

OTHER FEATURES

• Hurricane-rated enclosures available
• 186 mph wind load rating on sound aluminum enclosure

ALTERNATOR FEATURES

• The unique Fast-Response(TM) X excitation system delivers excellent voltage response and short circuit capability using a rare-earth, permanent magnet (PM)-excited alternator
• The brushless, rotating-field alternator has broad range reconnect ability
• NEMA MG1, IEEE, and ANSI standards compliance for temperature rise and motor starting
• Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field
• Self-ventilated and drip-proof construction
